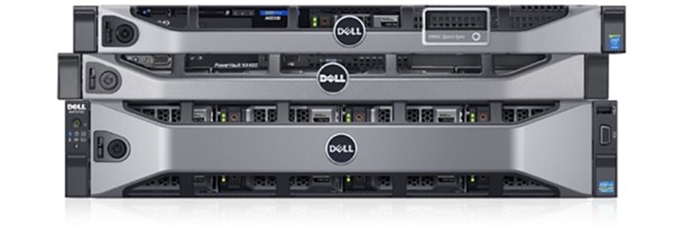

DELL PowerVault NX3230

Merk: DELL

Model: NX3230

Jelaga Part No. SKU00002445

J-Points: 2000 Point

In Stock




Intel Xeon E5-2620v3 2.4 GHz Processor, 32GB ECC, 600GB + 10TB SAS HDD, Rackmount 2U


PowerVault NX family – Enhanced NAS

Enhanced NAS

The Dell Storage NX storage appliances are easy to use and manage through a familiar, central management interface for stand-alone or cluster configurations:
  • OS pre-installed for easy deployment
  • Optimized for file serving with Windows Storage Server 2012 R2
  • Clustering capabilities when using the NX3330


PowerVault NX family – PowerEdge platforms

PowerEdge platforms

Rely on high speed and efficiency with NAS appliances built on 13th Generation PowerEdge rack mount server technology.

  • The latest generation multi-core Intel® Xeon® processors
  • Up to 32GB of memory and 96TB raw capacity (NX3230)
  • Options for SATA, NL-SAS and SAS drives

NAS gateway option

Leverage additional SAN arrays for massive external expansion by installing the NX3330 option as a NAS gateway. Support for clustering up to 64 nodes leveraging Clustered Shared Volumes (CSV) when connected to PowerVault MD3, EqualLogic or Dell Compellent storage arrays.
PowerVault NX family – NAS gateway option

Simple Management

Spend less time managing data and more time building your business using Microsoft® System Center and the Remote Desktop for Administration feature in Windows Storage Server 2012 R2 or the Integrated Dell Remote Access Controller (iDRAC7) Enterprise Edition to manage your data. In addition, you’re able to efficiently utilize NAS capacity resources and optimize your disk space with integrated features within the Dell Storage NX family, including:

  • Data reduplication
  • Thin provisioning
  • DFS-R synchronization capabilities across limited bandwidth network connections in distributed and remote office environments
  • Volume Shadow Copy Service (VSS) for SMB file shares that allows backup operations using snapshots of remote file shares supporting SMB-based server applications


PowerVault NX family – Updated OS

Updated OS

The Dell Storage NX family features Windows® Storage Server 2012 R2 software offering Microsoft Windows Server® 2012 R2 performance and versatility in the NAS appliances. It includes:

  • Latest SMB 3.0 features that support Hyper-V and SQL server
  • Continuous availability and failover clustering with NFS and iSCSI
  • Automatic detection and use of multiple network connections between SMB client and server
Processor Intel® Xeon® E5-2620 v3 2.4GHz,15M Cache,8.00GT/s QPI,Turbo,HT,6C/12T (85W)
Raid Controllers PERC H730 (internal HDDs)
Memori 32 GB RDIMM, (2x 16GB) 1600MT/s, Low Volt, Single Rank, x8 Data Width
Harddrive 600 GB (2x300GB) 10K RPM, 6Gbps SAS 2.5" HD Hot Plug Flex Bay, 10 TB (5x2TB) 7.2K RPM, 6Gbps SATA 3.5-inch Hot Plug Hard Drive
Fitur Data Protection Features: DFS-R (Replication), VSS (Snapshots), Data Management Features: Data deduplication with compression, FCI (File Classification Infrastructure), FSRM (File Server Resource Manager)
Drive Bays Up to 12 x 3.5” drives
Slot Provided Six PCIe 3.0 slots (four with x16 bandwidth and two with x8 bandwidth)
Power Supply Hotplug Power Supply, 750W
Chassis Form Factor 2U Rack
OS Compatibility Microsoft Windows Storage Server 2012 R2 Standard Edition
System Management Dell OpenManage™ featuring Dell Management Console, iDRAC8 Enterprise, Native Java RDP plug-in or Windows Server Management interface
Dimension 8.73 x 44.40 x 68.40 cm (H x W x D)
Weight 27.6 kg
Garansi 3-Years Prosupport: 7x24 Onsite Service
Rack Support ReadyRails™ II sliding rails for tool-less mounting in 4-post racks with square or unthreaded round holes or tooled mounting in 4-post threaded hole racks, with support for optional toolless cable management arm
